Understanding ASTM F1292 Fall Impact Testing
Fall impact testing under ASTM F1292 is the gold standard for playground safety surface compliance. This comprehensive standard determines whether your surfacing material will protect children from serious injury during falls from playground equipment.
For playground builders and safety inspectors, understanding the testing methodology isn't just about compliance—it's about child safety and liability protection. Every installation you complete must meet these precise requirements.
The Critical Height Measurement Process
ASTM F1292 testing uses a specialized impact attenuation device that simulates a child's head impact. The test apparatus drops a hemispherical aluminum headform from increasing heights until it reaches the critical height—the maximum fall height where Head Injury Criterion (HIC) values remain below 1000.
Testing Equipment Requirements
The testing apparatus must include:
- Hemispherical aluminum headform (160mm diameter, 4.6kg mass)
- Linear accelerometer system capable of measuring 1500g
- Data acquisition system sampling at minimum 20kHz
- Drop mechanism ensuring consistent vertical impact
Surface Preparation Standards
Before testing begins, surfaces must meet specific preparation criteria:
- Minimum 72-hour conditioning period under standard atmospheric conditions
- Surface moisture content between 15-25% for organic materials
- Ambient temperature between 50-90°F during testing
- No rainfall 24 hours prior to testing
HIC Value Calculations and Compliance Thresholds
The Head Injury Criterion calculation integrates acceleration data over the most critical time interval during impact. The formula considers both peak acceleration and impact duration:
HIC = max[(t2-t1)(1/2.5) ∫ a(t)dt]
Where maximum HIC values cannot exceed:
- 1000 HIC: Maximum allowable for any playground surface
- 700 HIC: Recommended best practice for enhanced safety margins
Impact Testing Procedure
Testing follows a systematic protocol:
- Initial height determination: Start testing at 12 inches above critical zone depth
- Incremental increases: Raise drop height in 6-inch increments
- Multiple impact points: Test minimum 9 points across the surface area
- Data validation: Each drop must produce consistent accelerometer readings
Documentation and Certification Requirements
ASTM F1292 testing generates critical documentation for compliance records:
Required Test Reports
- Complete HIC calculations for all tested heights
- Surface material specifications and depth measurements
- Environmental conditions during testing
- Calibration certificates for all testing equipment
- Digital accelerometer data files
Certification Timeline
Most certified testing agencies provide results within:
- 5-7 business days: Standard turnaround for single surface testing
- 10-14 business days: Multi-surface or complex installation testing
- Emergency expediting: 48-72 hours for critical project timelines
Common Testing Failures and Prevention
Understanding frequent failure points helps prevent costly retesting:

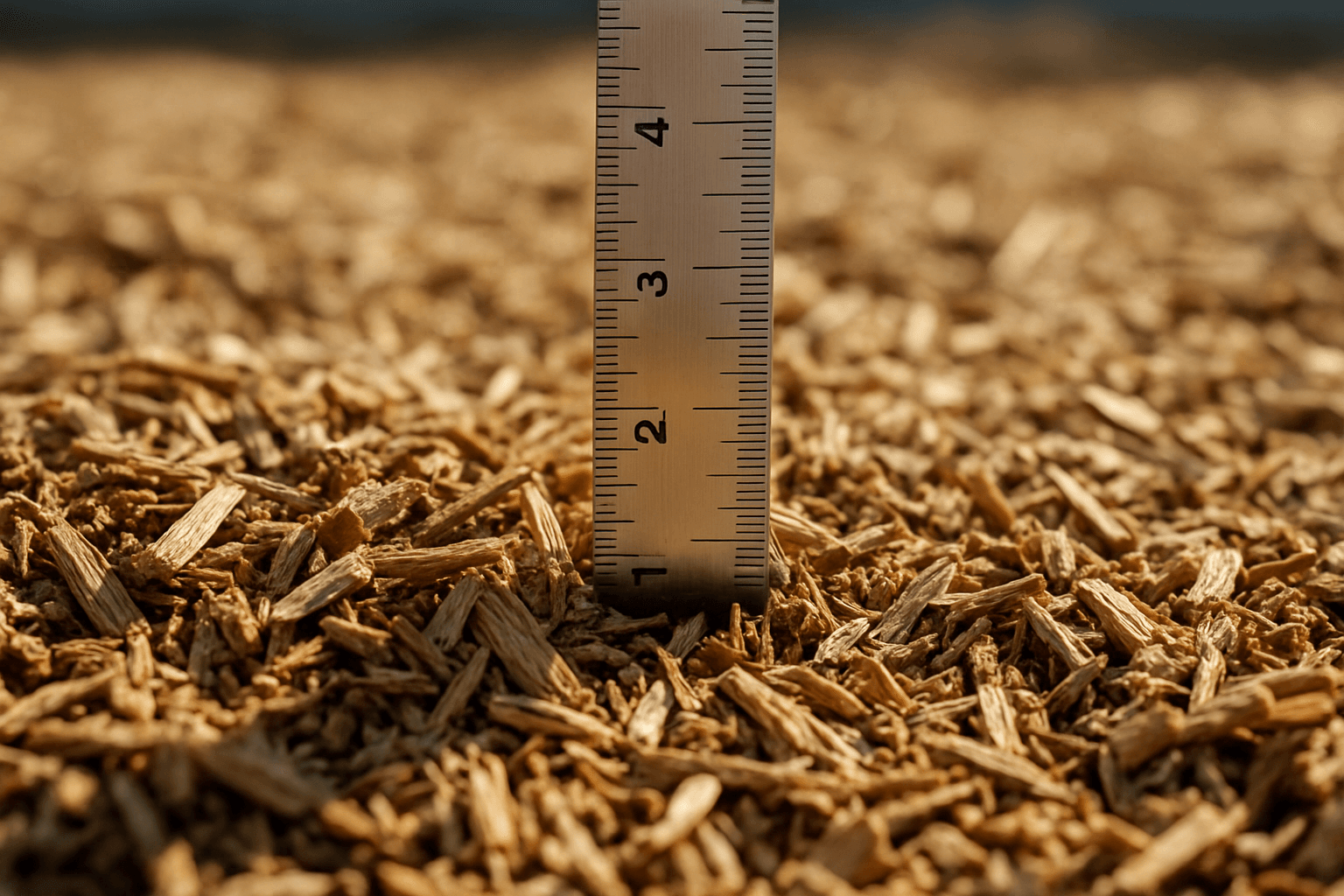

Material Depth Issues
- Insufficient depth: Most common cause of HIC exceedances
- Uneven distribution: Creates inconsistent impact attenuation
- Compaction problems: High-traffic areas often fail follow-up testing
Environmental Factors
- Moisture content: Too dry or too wet materials perform poorly
- Temperature effects: Cold weather increases surface firmness
- UV degradation: Older organic materials lose impact protection
Post-Installation Verification
ASTM F1292 compliance doesn't end with initial testing. Ongoing verification ensures continued safety performance:
Annual Testing Requirements
- High-use facilities (schools, public parks): Annual re-testing recommended
- Moderate-use installations: Testing every 2-3 years
- After major weather events: Storm damage assessment testing
Maintenance Documentation
Keep detailed records of:
- Depth measurements during routine inspections
- Material replacement and augmentation dates
- Any repairs or modifications to critical fall zones
Working with Certified Testing Agencies
Selecting qualified testing providers ensures reliable results:
Agency Qualifications
Look for laboratories with:
- ASTM F1292 certification and experience
- Portable testing capability for on-site evaluation
- Quick turnaround for project scheduling needs
- Digital reporting systems for easy documentation
Liability Protection Through Proper Testing
ASTM F1292 compliance documentation provides essential legal protection:
- Insurance requirements: Most policies require current testing certificates
- Municipal compliance: Public installations must demonstrate ongoing safety verification
- Risk management: Proper documentation reduces liability exposure in injury claims
GetMulch's Testing Partnership Network
GetMulch works exclusively with ASTM-certified testing agencies to streamline your compliance process. Our testing partners provide:
- Coordinated delivery and testing: Surface installation and testing scheduled together
- Digital documentation: Instant access to compliance certificates
- Multi-state coverage: Consistent testing standards across all project locations
When your playground surfacing needs to meet ASTM F1292 requirements, proper fall impact testing isn't optional—it's essential. Partner with suppliers who understand the critical importance of compliance documentation and can coordinate testing as part of your installation timeline.
Ready to ensure your next playground meets ASTM F1292 standards? GetMulch provides comprehensive surfacing solutions with integrated compliance testing. Contact us today to discuss your project requirements.
