You quoted 9 inches of EWF for a playground build. The spec was approved, the material delivered, the install done. Six months later, the owner calls. An inspector flagged the depth at 6.5 inches, the climber tops out at 8 feet, and now you've got a compliance problem.

That gap between installed depth and required depth happens more than it should. The fix isn't complicated - you just need to know which depth to target for the fall heights on your site, and then install enough extra material to account for what's coming.

Here's how to work through the depth selection on any playground job.

## Fall Height Is Not Equipment Height

This is where most depth miscalculations start.

Fall height is the distance from the highest accessible point on the equipment to the playing surface below. It's not the total height of the structure - it's the highest point a child can reach during normal play.

On a composite structure with a 6-foot deck, kids will stand on that deck. Fall height: 6 feet. A climber that tops out at 8 feet? Fall height: 8 feet.

Measure it yourself on every install. Don't rely on the architect's spec or what the sales rep told the client.

## ASTM F1292 Minimums by Material

Once you've got your fall heights, ASTM F1292 gives you the minimum depth requirements. The numbers look like this:

**Engineered Wood Fiber:**
- 4 ft fall height - 6 inches minimum
- 6 ft fall height - 9 inches minimum
- 8 ft fall height - 12 inches minimum

**Shredded Rubber Mulch:**
- 4 ft fall height - 6 inches minimum
- 6 ft fall height - 6 inches minimum
- 8 ft fall height - 6 inches minimum
- 10 ft fall height - 9 inches minimum
- 12 ft fall height - 9 inches minimum

Rubber mulch has a real advantage at higher fall heights. EWF needs 12 inches for an 8-foot fall height; rubber gets there with 6 inches. For equipment over 8 feet, rubber mulch is often the smarter call from a depth standpoint alone.

But here's the thing: these are minimums for material in good condition, properly installed. They're not what you should target on install day.

## Install Deep. Compaction Will Take Some Back.

EWF compacts. It breaks down over time, settles under foot traffic, and migrates out of the fall zone. A 12-inch EWF install on a busy school playground can drop to 9 inches within a full school year.

That 3-inch drop moves you from compliant to non-compliant for an 8-foot fall height. It happens without anyone doing anything wrong.

The standard approach is to install 15-20% deeper than the ASTM minimum to build in a compaction buffer:

- Minimum 6 inches? Install 7-8 inches.
- Minimum 9 inches? Install 11 inches.
- Minimum 12 inches? Install 14-15 inches.

Rubber mulch doesn't compact the same way, but it migrates. Swing zones and slide exits will thin out faster than open areas. Budget 10-15% overage on rubber jobs and make sure your containment borders are solid before the pour.

## EWF or Rubber: Which to Use at Each Fall Height?

The depth requirements alone don't make the decision for you. Here's a practical breakdown by fall height range:

**Under 6 feet:** Either material works at comparable depth (6-9 inches). EWF is usually cheaper. Rubber costs more upfront but holds depth better over time. Let budget and site use intensity guide the call.

**6-8 feet:** This is where rubber mulch starts to look better. EWF needs 12 inches at 8 feet; rubber only needs 6 inches. On a site with taller equipment, rubber cuts your material volume significantly and reduces long-term maintenance.

**Over 8 feet:** EWF isn't certified to meet ASTM F1292 at standard depths for fall heights above 8 feet. For equipment hitting 10-12 feet, you're in rubber mulch or poured-in-place rubber territory. Don't try to make EWF work here.

## Verify Before You Leave the Site

Depth isn't something you can estimate by eye. Take measurements before the crew wraps up.

Check the three highest-risk zones on every job:
- Directly below and around climbing structures
- Swing arc zones (6 feet in front of and behind the swing pivot)
- Slide exits (4-6 feet from the base of the slide)

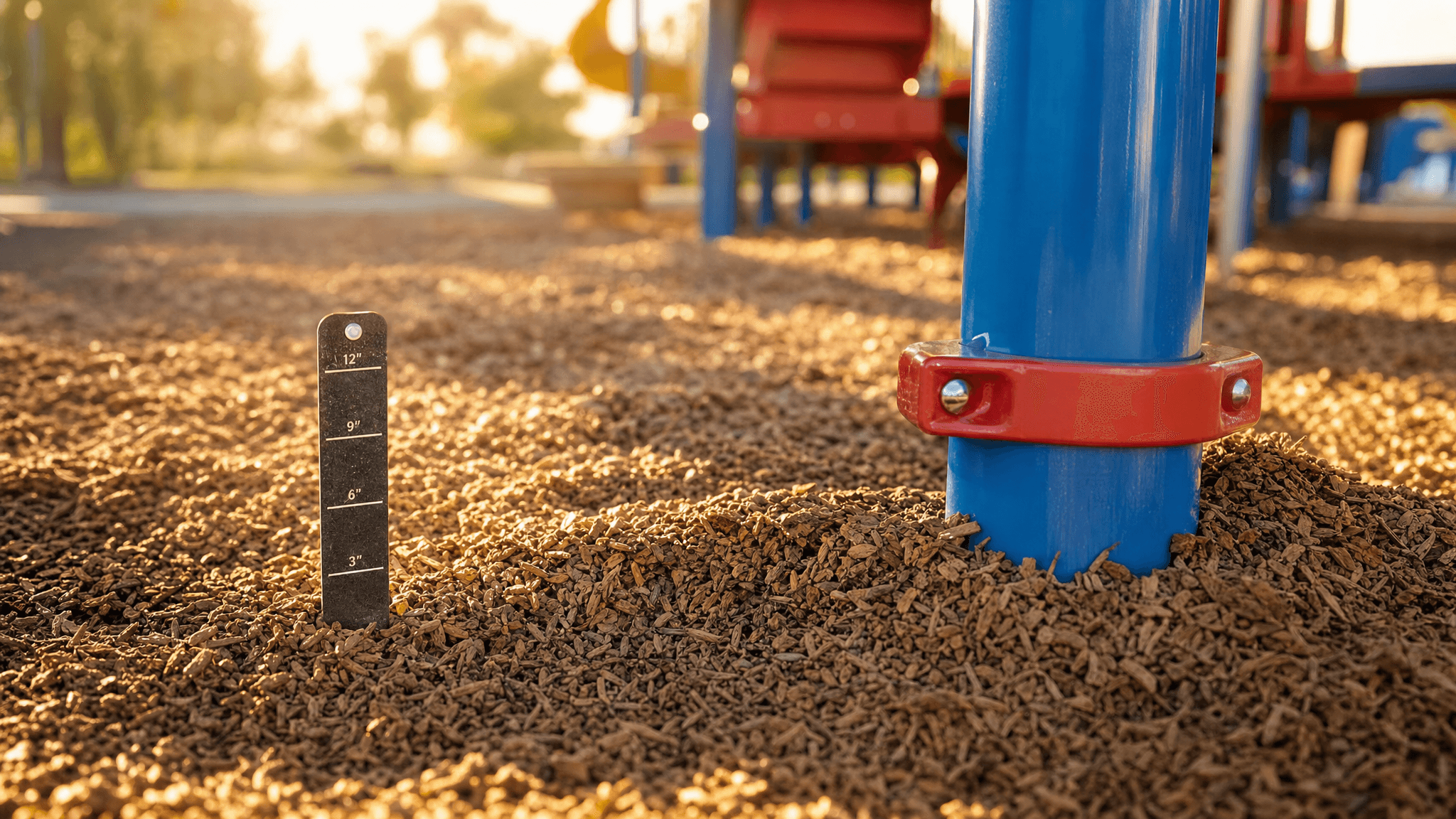

Use a depth gauge or a rigid ruler pushed straight to the base. Take 5 or more readings per zone and average them. If any zone reads below the ASTM minimum for your fall height, you're adding material before anyone leaves.

Write down what you measured. A quick log with the date, location, zone, and depth reading is your documentation layer if you ever need to prove the install was in spec at completion. Keep it with the delivery receipts.

## Top-Off Schedules Worth Sharing with Owners

Don't let the owner think this is a set-it-and-forget-it install. Be straight with them about what maintenance looks like:

- **EWF at public playgrounds:** Annual inspection at minimum. Quarterly checks at high-use sites.
- **EWF at school playgrounds:** Before school starts in fall, and again in spring. Add a mid-year check if the equipment gets heavy use.
- **Rubber mulch:** Annual inspection. Focus on swing zones and slide exits where migration runs highest.

Top-off means bringing the depth back to ASTM minimums - not back to the original overage depth. The goal is compliance, not replicating the day-one install volume.

## Get the Volume Right From the Start

Calculating coverage is straightforward once you know your target depth. Multiply your fall zone square footage by your depth in inches, then divide by 324 to get cubic yards. For a 2,500 sq ft fall zone at 12 inches depth, you're looking at roughly 93 cubic yards.

GetMulch delivers IPEMA-certified EWF and rubber mulch to job sites across the country. Get a quote at [getmulch.com/get-a-quote](https://getmulch.com/get-a-quote) - tell us the fall zone square footage and your target depth, and we'll confirm the volume and get delivery coordinated to your schedule.

Know what depth you actually need before the truck shows up. ASTM F1292 minimums by material and fall height, compaction planning, and field verification tips for playground installers.

Choosing the Right Mulch Depth for Different Fall Heights






## Depth Is the Variable You Control

The most common playground safety violation isn't the wrong material, it's the wrong depth.

ASTM F1292 doesn't tell you to use engineered wood fiber. It tells you how much of it you need based on how far a child can fall from the equipment. Get that calculation wrong, and a surface that passed material testing fails compliance before the playground opens.

This guide is your field reference. Bookmark it. Put it in the work truck.

---

## How ASTM F1292 Defines the Relationship

ASTM F1292 establishes a surface's **critical height**: the maximum fall height from which the surface can protect against a life-threatening head injury. A surface passes if it keeps impact forces below defined G-force and Head Injury Criterion (HIC) thresholds during standardized drop testing.

Two inputs determine compliance:

1. **The material**: each product carries a certified critical height rating at a specific installed depth
2. **The installed depth**: deeper installation extends critical height protection, up to the material's tested maximum

This is why depth and fall height are inseparable. You cannot evaluate one without knowing the other.

---

## Depth Reference by Fall Height

Use this table as your starting point for installation planning. Material-specific adjustments follow.

| **Fall Height** | **Minimum EWF Depth** | **Minimum Rubber Mulch Depth** | **PIP Depth** |
|---|---|---|---|
| Up to 4 ft | 6 inches | 4 inches | Per manufacturer spec |
| Up to 5 ft | 6 inches | 6 inches | Per manufacturer spec |
| Up to 6 ft | 9 inches | 6 inches | Per manufacturer spec |
| Up to 8 ft | 9 inches | 9 inches | Per manufacturer spec |
| Up to 10 ft | 12 inches | 9 inches | Per manufacturer spec |
| Up to 12 ft | 12 inches | 12 inches | Per manufacturer spec |

**These are minimums at installation, before settling and compaction.** For loose-fill materials, install deeper than your minimum. See below.

---

## Material-Specific Guidance

### Engineered Wood Fiber (EWF)

EWF is the most widely specified loose-fill surface on commercial playgrounds, and the one most likely to fail re-inspection if initial depth isn't accounted for properly.

**What changes over time:**
- EWF compacts 20-25% in the first 6-12 months under use
- Displacement from high-traffic zones ( below swings, at slide exits ) can reduce effective depth by 3-4 inches within a single season
- Rain accelerates initial compaction in the first 30-60 days

**Practical rule:** Install 20% above your target maintenance depth. If compliance requires 9 inches, install at 11 inches. If you need 12 inches, install at 14-15 inches.

**Always spec IPEMA-certified EWF.** Certification documents the material's tested critical height at specific depths, that documentation is your proof of compliance.

### Rubber Mulch (Shredded Rubber)

Rubber mulch has a different failure mode than EWF: migration, not compaction.

- Rubber migrates laterally, especially at slide exits and swing fall zones
- Wind displacement is greater than EWF because rubber mulch is lighter per cubic foot
- Perimeter containment edging must be rated for rubber migration, with at least 3 inches above the finished mulch surface

**Practical rule:** Installed depth equals your target maintenance depth. Compaction isn't the issue, lateral migration is. Plan for annual top-off in high-traffic zones regardless of initial depth.

### Poured-In-Place (PIP) Rubber

PIP is engineered to a fixed thickness at installation. There's no compaction, no migration.

- Depth is determined by the manufacturer's testing data at your required fall height
- You cannot add depth after the pour, verify specifications against equipment fall heights before contracting
- Inspect seams and edges annually, degradation at joints is the primary long-term failure mode for PIP

---

## The Zones That Fail First

Depth requirements apply across the entire use zone, but not all areas wear evenly. These zones lose depth fastest and should be prioritized during every inspection:

**Swing fall zones:** Extends 2x the pivot height in front of the seat. This is the highest-impact, highest-frequency zone on most playgrounds. Measure depth here at every quarterly inspection.

**Slide exits:** Children gain speed on the slide and land at the exit point. Foot-dragging compounds material displacement. Check monthly during peak season.

**Climbing structure perimeters:** The full use zone perimeter ( not just the obvious entry/exit points ) must meet the compliance depth for the structure's highest accessible platform.

**Tip:** When you hand off a completed installation, include a site sketch marking depth-critical zones. It tells the client's maintenance crew exactly where to probe first. That sketch becomes part of your compliance documentation.

---

## Common Depth Errors to Avoid

**Installing to spec, not to use.** The ASTM minimum assumes average conditions. A high-volume urban park playground in year-round use needs more initial depth than a low-traffic HOA property. Know your site before you calculate your order.

**Skipping displacement verification before handoff.** If three weeks passed between installation and handoff ( with rain, settling, and foot traffic ) remeasure before you sign off. What was 12 inches at pour may already be 10.

**Single-point measurements.** Depth at the edge of the fall zone doesn't tell you depth under the equipment. Take 5-6 probe measurements per critical zone. Minimum, average, and low readings all matter.

**No documentation at installation.** Your depth readings on day one are your proof of compliance. If a claim surfaces two years later, those records are the difference between a defensible position and an exposure.

---

## Document Before You Leave the Site

Required at every installation:

- Material name, supplier, and IPEMA certification number
- Measured depth by zone (minimum 5 probes per critical zone)
- Fall height for each piece of equipment (pull from equipment spec sheets)
- Date of installation and crew lead signature
- Photographs of depth gauge at each measurement point

GetMulch provides IPEMA certification and delivery documentation with every order. Pair that with your installation depth log and you have a complete, defensible compliance record.

---

## Pre-Departure Checklist

Before your crew wraps and leaves the site:

- [ ] Depth measured in all fall zones (5+ probes per zone)
- [ ] EWF zones installed at 20%+ above minimum depth
- [ ] Rubber mulch containment edging set 3+ inches above finished surface
- [ ] PIP thickness verified against manufacturer specification
- [ ] Fall heights confirmed against equipment spec sheets
- [ ] All depth measurements logged and photographed
- [ ] Client briefed on first-year compaction and recommended top-off schedule

---

## GetMulch Delivers Certified Material: You Set the Depth Right

GetMulch supplies IPEMA-certified EWF and rubber mulch with documented critical height ratings and full delivery paperwork. Tell us your fall heights and site conditions, we'll help you spec the right material and the right volume.

Request a quote at **[getmulch.com/get-a-quote](https://getmulch.com/get-a-quote)**.

The most common playground safety violation is the wrong depth — not the wrong material. This field reference breaks down ASTM F1292 depth requirements by fall height, material type, and compaction factors so your crew installs it right the first time.
